Components
Agitator
Agitators play a central role in biogas plants. They ensure equal mixing and temperature spreading of the digester load, an even supply of raw materials to the bacteria and that the biogas is stirred out of the substrate.
The “paddle” is one of our first own products and thus deserves the title “original”. Due to its high durability, there are rumors that the first paddle is still running today.

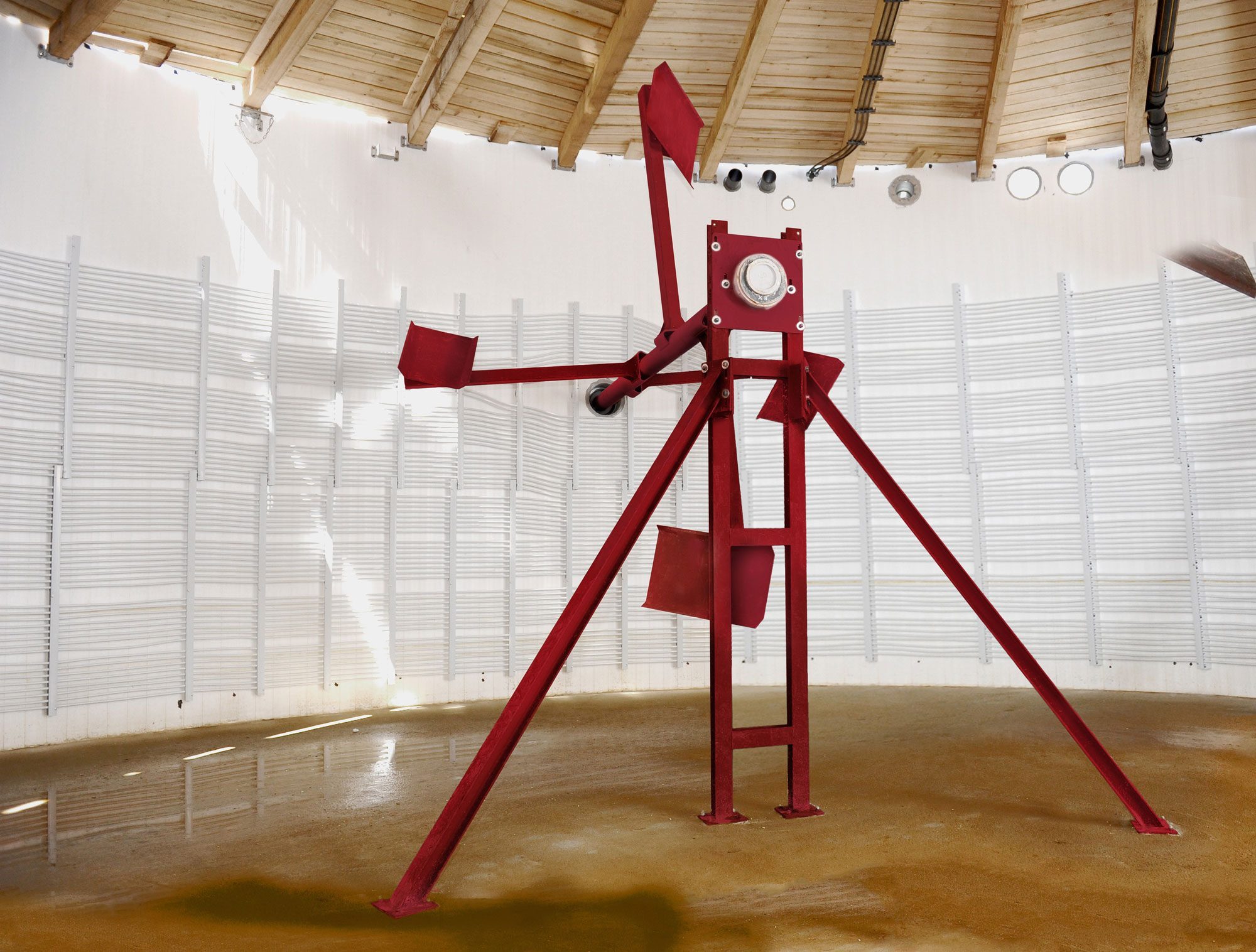

Paddelgigant®
For demanding substrates!
PROVEN AGITATOR FOR DIGESTERS
The Paddelgigant® from agriKomp, which was already introduced to the market in 2002, is one of the most widely used agitators in biogas plants and has proven its high efficiency in numerous applications. The Paddelgigant ® is available for a wide variety of tanks, whether in different installation heights or also in different lengths of the agitator shaft.
FREE SUBSTRATE SELECTION
The Paddelgigant® is a slow-running large agitator that mixes the substrate according to the tank size and the medium in the digester. The bacteria continuously receive new feed and the anaerobic degradation of biomass can proceed undisturbed. The Paddelgigant® was specially designed for structurally substrates and high dry matter contents. This opens up a wider range of feedstock for biogas plant operators and avoids the need for substrate preparation (shredding, chopping, etc.).
- Most utilised paddle agitator in Germany
- Excellent for the digestion of renewable greens and demanding substrates such as long-fibre manure or grass silage
- High efficiency reduces the power consumption
- Optimum mixing of demanding substrates with increased dry matter concentration
- Good and slow mixing, therefore gentle to bacteria
- Durability through robust construction
- Low maintenance mixing system for maximum reliability
- Maintenance-free sealing of the panel feed-through
- Stirrer shaft with a maintenance-free and durable plain bearing
- Available in different installation heights
diving stead of paddling
AgriMix
For substrates with lower viscosity!
RELIABLY HIGH AGITATING PERFORMANCE
The agriMix submersible agitator was specially developed for agitating and homogenising substrates with lower viscosity. agriMix is particularly suitable for agitating the digestate storage or, in combination with a Paddelgigant®, for use in the main digester. Safety and durability as well as ease of maintenance were at the forefront of the development. This is ensured by the use of high-quality components, robust and proven technology and integrated monitoring systems.
DURABLE WITH HIGH SAFETY STANDARDS
In the technical design of the agriMix, the focus was on a flow-optimised agitator blade. This results in an optimal and energy-efficient transfer of the stirring energy into the liquid substrate. During operation, the agriMix is sunk into the substrate. The operating height of the agriMix can be adjusted to the fill level of the pit by means of a lifting device with a cable winch. The agitator is equipped with a plug system whose cable is laid in a protective tube. In case of maintenance, only the agitator itself needs to be removed.
- Long service life due to robust, proven technology and use of quality components
- High agitating performance with low energy consumption
- Height adjustment for adaptation to the filling level
- Suitable for varying fill level
- High safety standard due to integrated motor temperature monitoring
- Easy to service due to connector system
- Low maintenance due to long maintenance intervals
